What To Choose? Ducted Air Conditioners vs Split Air Conditioner

So, you’re after an air conditioner but are stuck on which type to purchase – a ducted reverse cycle system or a high wall split system?

Both are effective at cooling a space, but the way that they do this differs dramatically. Your choice will often depend on a number of factors such as the space that you are wanting to cool, your budget, whether your home can accommodate the system, and much more.

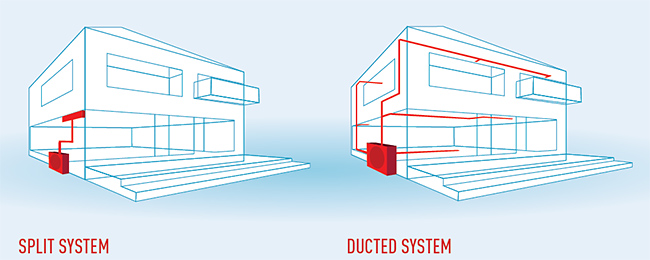

Split-or-Ducted-Air-Coditioner-Panasonic

Ducted Air Conditioning

Ducted reverse cycle air conditioners work just as the name suggests – through a series of ducts. These are hidden within the roof space and out of sight, making it the more attractive choice. They contain a central unit, known as the fan-coil unit. Ducts then branch off of this fan-coil unit and run to different rooms/zones within your home. The air is expelled from the vents in your ceiling, which are the only visible parts of the system.

Return Air Grilles above a Kitchen
GREEN EFFICIENT LIVING CAN PROVIDE YOU WITH A NUMBER OF DUCTED REVERSE CYCLE AIR CONDITIONING OPTIONS THAT SUIT YOUR LIFESTYLE AND REDUCE ENERGY WASTAGE

There are many pros for ducted air conditioning in comparison to split systems, with one of the biggest being that you can easily and efficiently heat or cool your whole home at the touch of a button. Controlled by a thermostat, ducted systems are much better at keeping a consistent temperature throughout your whole home, but the option to have your system zoned means that you can individually control the amount of conditioned air to each room. There are two ways that you can do this; with a simple on/off switch, or a variable air volume controller which you can increase or decrease the amount of airflow to suit your requirements. The last option also allows for better air balancing throughout your system. The entire system is completely hidden within the roof cavity of your home (besides the vents in your ceilings), making it the more attractive option over split systems. Ducted systems are often a lot quieter than their counterparts, with the only noise being a quiet fan noise from the outdoor unit, and gentle passing of air through the central filtration grille.

Despite the extensive list of pros, ducted air conditioning systems also have their limitations. Ducted systems are the more expensive option to purchase and have installed. As the system is installed within your roof, technicians will need to spend a large amount of time and effort, cutting into your ceiling and this can often add to the cost. Having a ducted system installed is best done during the building or renovation of your home (but not limited to), and they can often be restricted to which homes they can be installed in. Apartments and dwellings with limited roof space often may not be able to have ducted systems installed due to this reason, and already built two-storey homes need a large amount of extra consideration and planning. They are also not the best option if you only spend an extensive amount of time in only a small area of your home.

Split System Air Conditioning

Split system air conditioners are the most ideal solution for single room heating and cooling. They are made up of two components – an indoor unit (head unit) and an outdoor unit (compressor). The indoor unit moves the cool air around the room, while the outdoor unit dissipates the heat from the cooled area (heat exchange).

Panasonic High Wall Split installed in a wall

Split system air conditioners are the more cost-effective choice to purchase and have installed. Due to the fact that you are not purchasing an entire system of ductwork and vents, the costs can be minimal in comparison to ducted systems. A considerably less amount of time is needed for technicians to install them, and there is minimal modification required to your home. If budget is a restraining factor, more split systems can be added to your home if you require later on, or as your budget allows. Due to the fact that split systems only heat or cool one room or space of your home, they have lower energy demands and therefore are quite cost-effective to run.

However, there are also cons involved with having a split system installed within your home. The heating or cooling capacity is limited with splits, and therefore may not be a possible option for your space. While they are the cheaper option singularly, if you need multiple units within your home, the costs can add up. The bulkiness of both the indoor unit and the outdoor unit, and the inability to hide them can often become an eyesore and stand out on your wall. So if you are looking for a neat and tidy option that is easily concealed, then a split system is not your choice.

So which option is best for me?

Each of these systems essentially performs the same job, but personal preferences and limitations can restrict which one is best for you. It is important to take into account each of the pros and cons provided so that your system benefits you for years to come.

Factors to think of when deciding include:

  • What maintenance/upkeep is included – A ducted system will require yearly services by a professional, while a split system will require more regular cleaning that can be completed by the homeowner, and professional servicing less frequently.
  • How much you want to spend – A ducted system will cost more to purchase and have installed upfront but the options to zone your system means that their running costs can be reduced. While a singular split system will cost less upfront, should you need to add more in the future, the costs can add up.
  • What area you are looking to cool – Do you want to cool your entire home or just one room? Should you only need one room cooled, is important to think about whether you will be wanting to cool more in the future.
  • Aesthetics – The way the system will look is also something to think about. While split systems stand-out on both an indoor and outdoor wall, they are becoming much more visually appealing.

If you are unsure about which system is best for you, call us today on (08) 8297 3422 to speak to one of our professionals. We can provide fuss-free quotes for more than one type of system so that you can weigh up your options.

Solar FAQs

Frequently Asked Solar Questions

Over the years we’ve become accustomed to hearing the same questions relating to having a solar photovoltaic (PV) system installed. So, as we are dedicated to education and helping our customers as much as we can, we have compiled a list of our most frequently asked questions to help you on your journey.

1. What is a grid-connected solar system?

A home without a solar system draws its energy from the electricity grid. A grid-connected solar system is a solar PV system that is connected to the electricity grid. Your household will consume the energy that is created from your solar system first, and if more is needed, it will draw the remaining electricity from the grid. It also allows your system to send power back out to the grid. If your household is not consuming the entire amount of energy that your system is creating, then that surplus is sent back out to the electricity grid. This surplus is measured and credited back onto your power bill. Depending on what state you live in and what electricity supplier you are with, this value will vary.

2. How much will my solar system cost me?

As an extremely broad question, the answer is dependent on a number of factors. The final price depends on what brand of system you choose, how many panels you have installed, whether you decide on a string inverter or microinverter and much more.

ALWAYS get multiple quotes to compare prices and remember that the most expensive quote doesn’t necessarily mean equate to the best system. In South Australia, on average a 5kW (kilowatt) system costs approximately $5,500 but there are some elements that will affect this price.

3. What size system do I need?

To answer this question, your system designer will need to understand your energy habits such as your daily usage amount, your energy usage patterns, your location, etc. From here, they will be able to offer you the correct sized system. While your installer should be able to offer you a rough estimate just by receiving your latest electricity bill, they should not be able to present you with an ACCURATE system size without first asking these questions.

4. How many solar panels will I need?

Once your installer determines the system size that your household requires, they will then look at what panels will best suit your system. Not all panels are created the same, or yield the same amount. So your installer should be working out which panels are most appropriate for your lifestyle and energy patterns. They will also need to look at elements such as your roof size and budget.

5. Will anything else affect the price of my system?

There are a few added elements that will affect the overall price of your system. Each solar PV system is tailored individually, so don’t assume that just because your family member has a 5kW system with X amount of panels on their home, means that you will pay the same price for the same system. Factors need to be taken into account such as additional labour costs for things like a double storey roof, panel mounting brackets to angle your panels correctly if your roof is flat and much more.

6. How much money will I save with my solar system?

Typically, it can take anywhere from four to six years for a system to pay itself off in South Australia. Payback times depend on a number of things such as your location, your energy consumption, daily usage patterns, how well you maintain your system, the size of your system and your feed-in tariff.

Ensuring that you have the correct sized system will speed up your payback times. Having a system that is large enough is important as it will not only cover your power consumption, but it will maximise your return on investment. But having a system that is too large will mean that you’re exporting a large surplus of energy back into the grid and as feed-in tariffs are no longer as high, you will be selling your power for less than your electricity rates. So it’s important to ensure that your system is correctly sized to maximise your return.

7. Is my roof right for solar?

Not every roof is suitable to have a solar system installed on it. Generally, there are six key factors that will determine the suitability of your system.

  • Orientation: While a north-facing roof is best for optimum production in South Australia, it has been proven that panels facing north.
  • Shade: Solar panels only produce maximum energy in full sunlight. If a part of a panel becomes

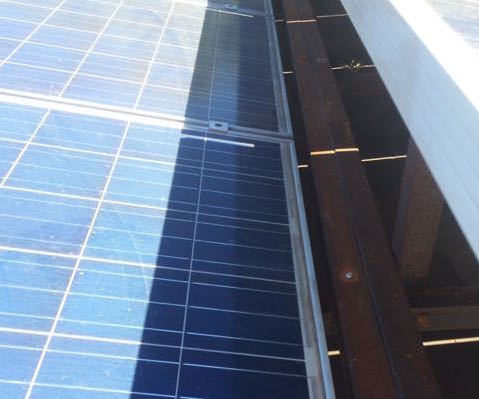

    Image showing partial shading of solar panels
    Shadows on solar panels can affect the generation values of the entire system.

    shaded, then the output level is reduced. It is therefore necessary that your roof does not experience any shade if possible. Vegetation and overgrown trees can easily be removed, but shade from chimneys or poles on the roof is much more difficult to work around. If there are certain ares of you roof that do experience shading during the day, then your installer may offer you a system with microinverters to avoid your output dropping too much.

  • Size: Your roof has to be large enough to have the space for the number of panels that you require. The minimum sized system that can be installed in Australia is a 1.5kW, which generally equates to 6 solar panels. If your roof is not large enough for 6 solar panels, then you may need to look at other options.
  • Age: The age of your roof will be an indication of its structural integrity. If you are in an older home and are unsure about whether your roof will be able to safely support a solar system then it is best to have an inspection done beforehand.
  • Pitch: Solar panels

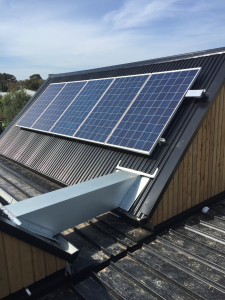

    Solar panels installed on a roof with a very steep pitch
    The pitch of your solar panels can greatly affect their power generation values.

    generate maximum power when they are positioned perpendicular to the sun. Your installer will need to take the pitch of your roof into account when installing your panels at the optimal angle. If the pitch of your roof is too flat or too steep, then your installer will need to use mounting brackets to angle the panels correctly for maximum yield.

  • Material: While solar panels can generally be installed on any roof, there are some exceptions. Metal roofs are often the best to install a system on, while tile roofs can be quite fragile and generate an extra cost.

8. Does the temperature during the day affect production results? Does hotter weather equal greater energy production?

Many people believe that hotter weather produces more energy, however, it is much the opposite. The hotter the day, the less energy that your system will produce. This is because a solar system converts LIGHT into energy and not HEAT.

A solar panel has an optimal temperate range that is best for producing the greatest amount of energy. As the temperature rises out of this optimal range, the production efficiency begins to decrease. Excessive heat is therefore detrimental for a solar panel’s production. Instead, the days that you will find you produce the most energy are on sunny, cooler days.

9. Is there any maintenance involved in having a solar system on my roof?

Despite the rumours, solar panels are NOT self-cleaning. So, like any other appliance or installation around the home or office, we do ask that you occasionally inspect and perform a small amount of maintenance on it. You can find a copy of our maintenance manual here.

10. Do I need developmental approval to have a solar system installed?

Generally speaking, you shouldn’t need to get council or planning approval when having a solar system installed, however, there are a few instances in which you may. If you live in a council strata development, then getting approval from the body corporate may be required, or if you live in a heritage listed home then you will need to get council approval. If you are unsure whether or not you should be receiving approval, you can ask your solar installer or local council for guidance.

11. Will I still be using energy from the grid?

Yes. Your solar system only generates energy when there is sunlight, and when this energy is generated it needs to be used immediately. At night time when there is no energy being produced, your system will draw energy from the electricity grid so that you can continue to use the appliances within your home. Should you have a battery system however, it can store energy produced by your system to use when your system is not generating power.

Still unsure?

Solar systems are all individually tailored to ensure maximum power generation for your household. If you have any further questions, please do not hestitate to give us a call on (08) 8297 3422 today, to speak to one of our qualified installers.
